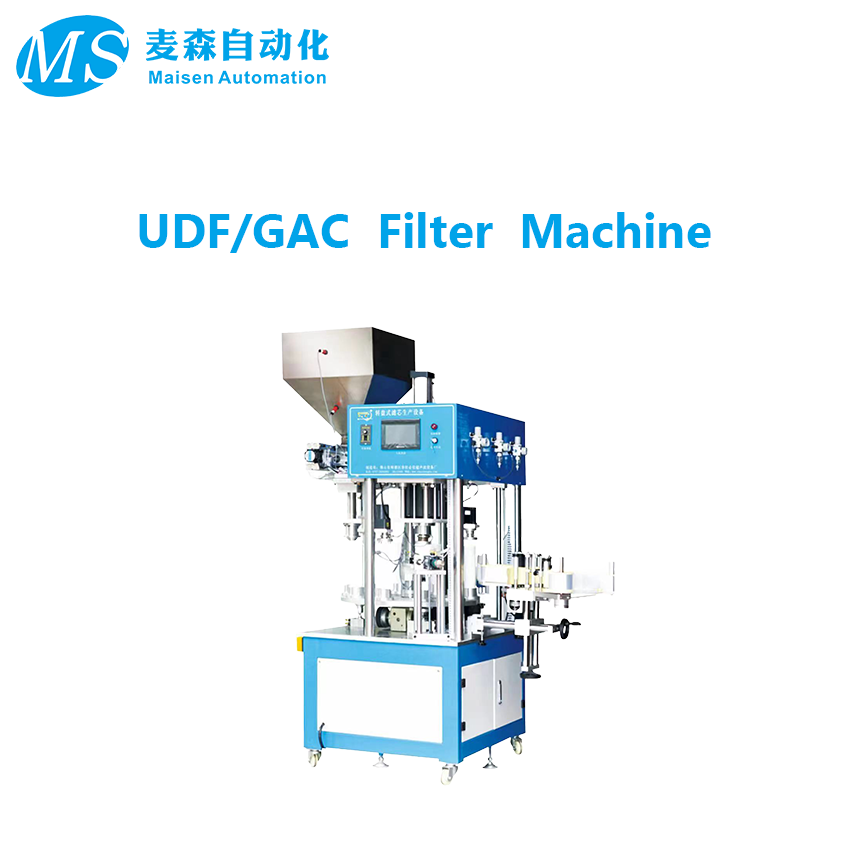

UDF/GAC Filter Machine

1. Equipment Purpose and Operation Method

1.1 Used for the filling and spin-welding process of filter elements within 10 inches.

1.2 Operation ProcessManually place the body end cover and foam → Press the start button → The equipment automatically completes spin-welding, flipping, and filling → Manually place the secondary foam and end cover → Spin-welding → Finished product exits.

2. Equipment Basic Parameters

No.NameParameter

1ModelYL-ZP10

2Overall Dimensions1200*1150*2550 (LWH MM)

3Total Weight700 KG

4Head Travel100 MM

5Power SupplyAC380V 50/60HZ

6Air Pressure0.1-0.6 Mpa

7Total Power

8 KW8Rated Speed1500 RPM

9Rated Torque15.0 NM

10Instantaneous Max Torque45.0 NM

11Rated Current40.0 A

12Processing Height Range300 MM

13Max Processing Diameter80 MM

14Operation ModeSingle Cycle / Auto Cycle

15Processing TimeAdjustable 0-99 S

16Control MethodProgrammable Logic Controller (PLC) + Human-Machine Interface (HMI)

17Main StructureSteel, Aluminum Alloy

No.NameBrand

1PLCMitsubishi

2Touch ScreenScreenCom

3Servo MotorHuada

6Pneumatic ComponentsAirtac

7RelayOmron

8Other Electrical ComponentsChint, Yijia

9Photoelectric SwitchXinling

10SensorAirtac

11Reduction MotorDongchuan

12Feeding MachineYishun

13Power SupplyMean Well

3.Usage Environment

1 Altitude (m): ≤ 1800

2 Operating Ambient Temperature (°C): -10 ~ 55

3 Operating Relative Humidity (%): ≤ 95

4 Worksite: Indoor
