2E2M PP Melt Blown Filter Cartridge Machine

QR code

This 2 head pp spun filter machine,has high capacity design ,one day capacity 5000- 6000pieces pp filters producing.Stable
operation at less than 30KW per hour.Excellent quality, low energy consumption, worthy of your trust.

+8618836098081

Detail

Product Overview

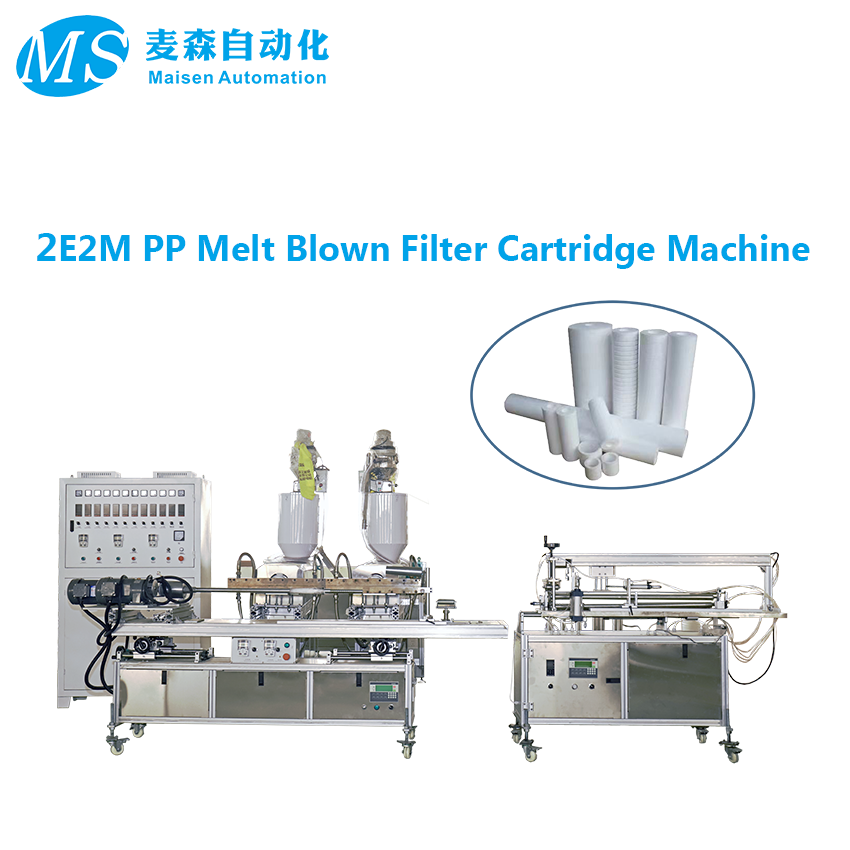

2E2M PP Melt Blown Filter Cartridge Making Machine

PRODUCT SPECIFICATIONS

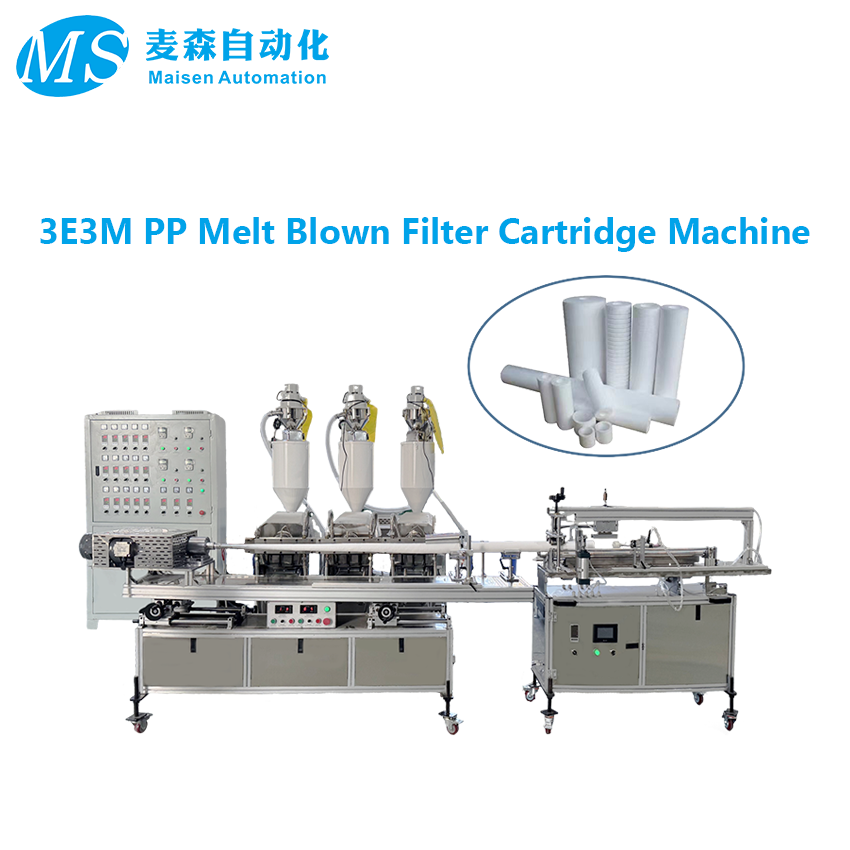

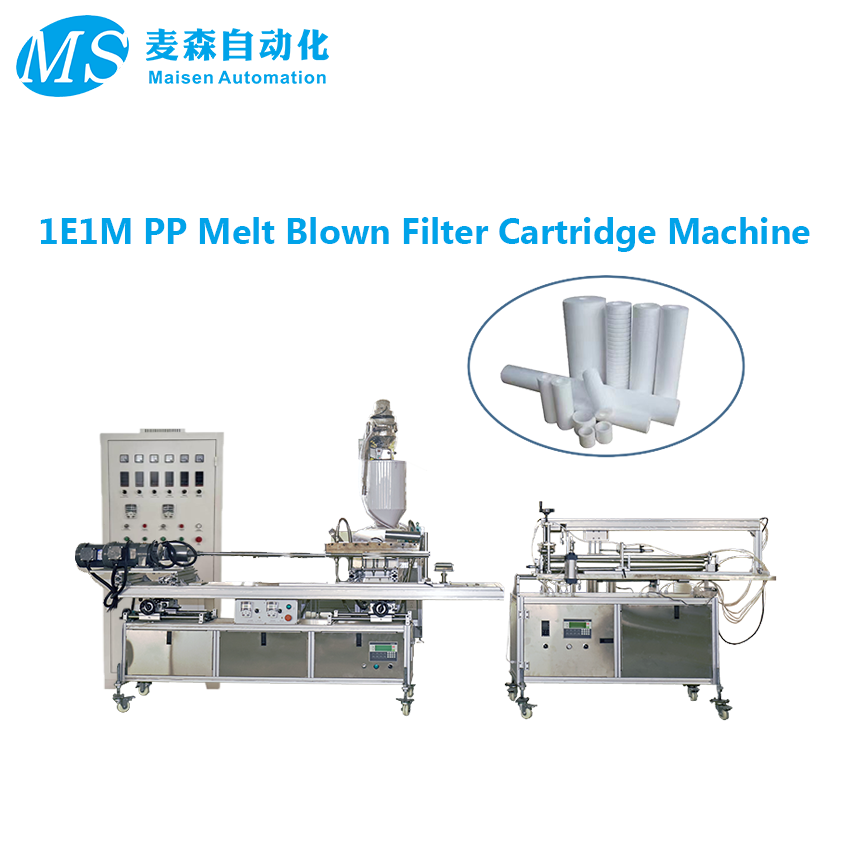

Model	1E1M	2E2M	3E3M
Rated Power	37.7KW/H	75.9KW/H	97.5KW/H
Running Power	14.0KW/H	35.0KW/H	40.0KW/H
Capacity	2000-2500pcs/24h	5000-6000pcs/24h	5000-6000pcs/24h
Mircron Layer	1	2	3
Mold	150-650mm	650mm	450mm
Filter Micron	1-100micron	1-100micron	1-100micron
Filter Size	length<=40inch<customized ID:15-200mm OD:20-300mm can adjustable	length<=40inch<customized ID:15-200mm OD:20-300mm can adjustable	length<=40inch<customized ID:15-200mm OD:20-300mm can adjustable
Filter Surface	smooth .grooving. dotting.orange.line.logo	smooth .grooving. dotting.orange.line.logo	smooth .grooving. dotting.orange.line.logo

FEATURES AT A GLANCE

Smooth surfaceGrooving surface Dotting surface Lining surface Orange surface
Length:Any length,like 5 10 20...60 inch length
Inner diameter:28 30 mm default

Outside diameter:Adjustable(2.5-4.5inch)

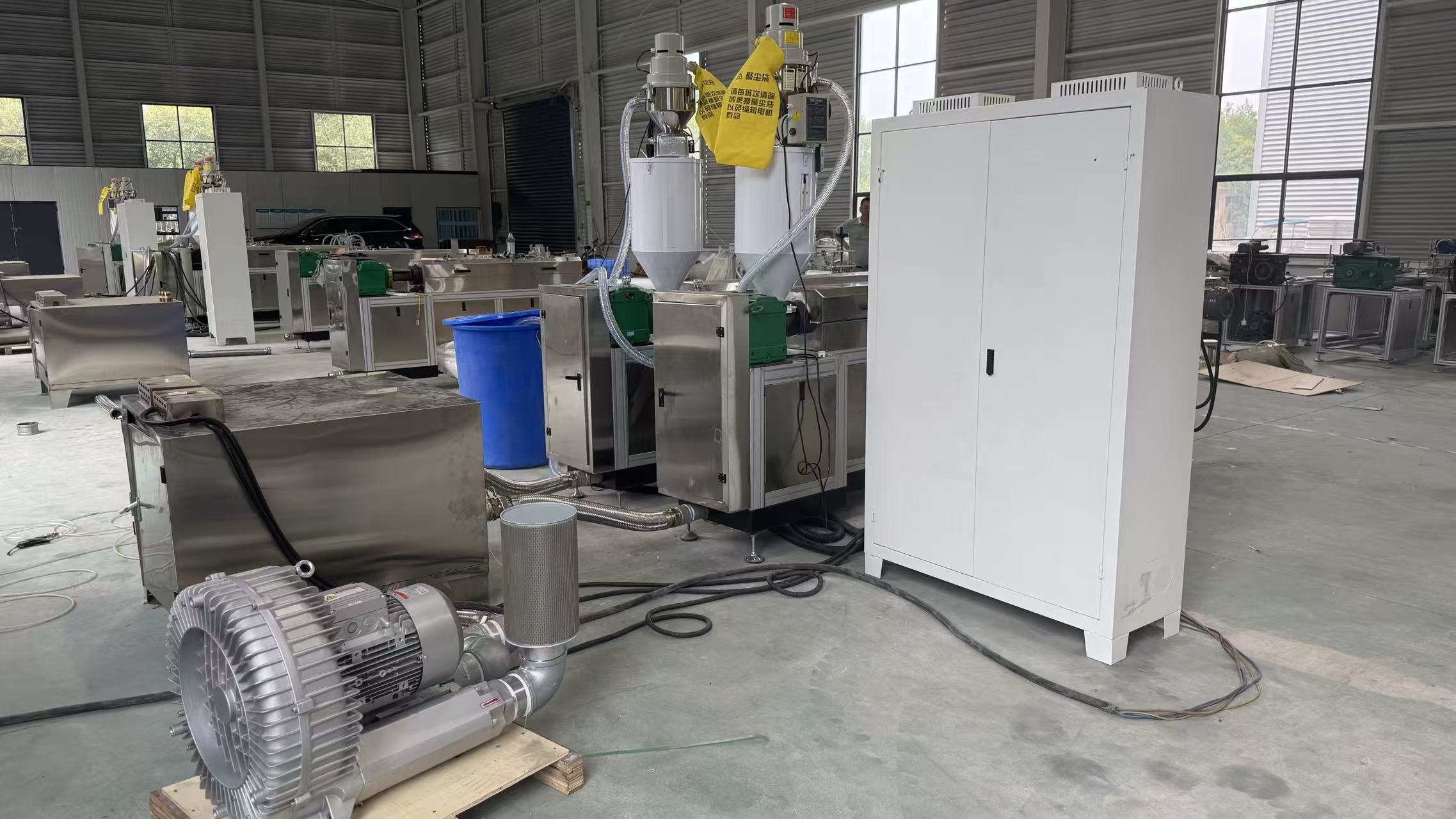

Factory Live Shot
