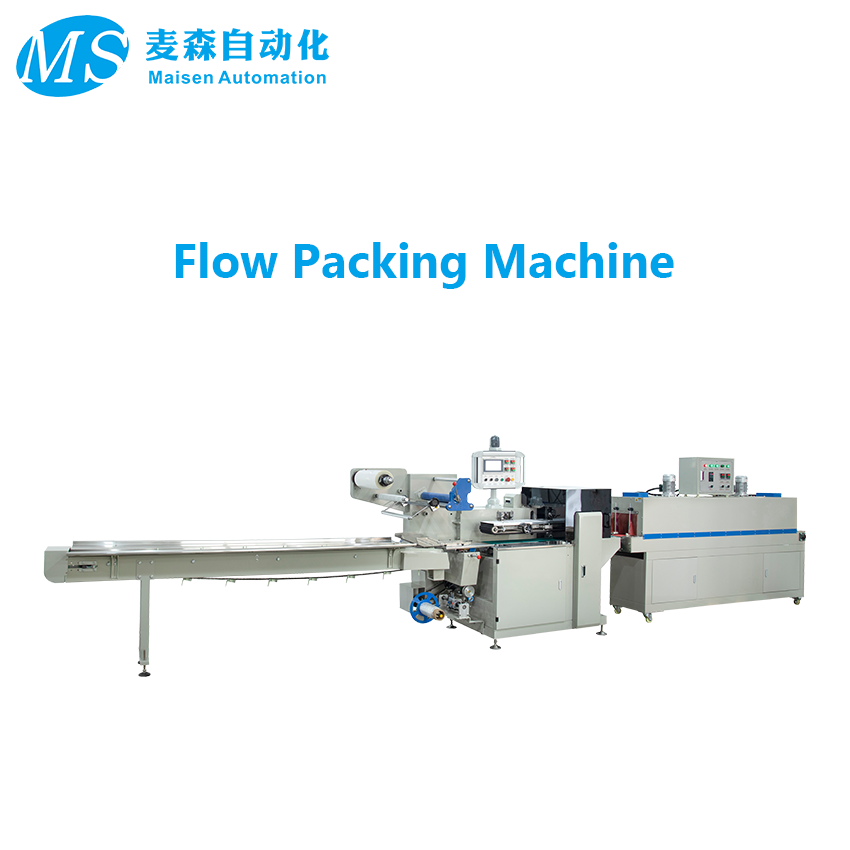

Flow Packing Machine

QR code

This machine is simple to operate, reliable in quality, stable in performance, variable frequency and variable speed. The control of the entire machine is centralized by PLC, reducing points of failure. The heat shrink furnace has high-efficiency dual temperature zones, stepless speed regulation, and automatic temperature control. Efficient hot air circulation ensures shrinkage quality.

+8618836098081

Detail

Product Overview

MS-590 Full servo high-speed heat shrink packaging machine

PRODUCT SPECIFICATIONS

FEATURES AT A GLANCE

This machine adopts Japanese technology and all imported electrical components. It is a high-speed automatic packaging machine born from Japan's advanced technology and rich experience

最大膜宽 Max Flim size		≤590mm
型号 Model		120	150	180	210	240
包装尺寸 Packing size	L：袋长 Bag length	L:60mm-320mm	L:100mm-450mm	L:150mm-530mm	L:180mm-600mm	L:210mm-650mm
	W：物宽 Object width	w:10mm-250mm	w:10mm-250mm	w:10mm-250mm	w:10mm-250mm	w:10mm-250mm
	H：物高 Object height	H:5mm-35mm	H:35mm-70mm	H:65mm-100mm	H:80mm-130mm	H:100mm-150mm
包装速度 Packing speed		30-150（Pcs/Min）	30-150（Pcs/Min）	30-135（Pcs/Min）	30-100（Pcs/Min）	30-80（Pcs/Min）
薄膜种类 Flim type		PVC;POF;等热收缩膜Isothermal shrinkable film

额定功率 Power consumption	包装机Packing machine：4.75KW；收缩机Shrinking machine13.5KW
电源 Power supply	主机Host:220V,50HZ/60HZ; 收缩机Shrinking machine:380V，50HZ/60HZ
主机尺寸 Envelop dimensions	4800x1170x1500mm
收缩机 Shrinking machine	外形尺寸Dimensions：2600x600x1700mm		炉道尺寸 Furnace size：2300250200mm
整机重量 Weight	主机Host：760KG	收缩机Shrinking machine：380KG

Using our bagging machine not only greatly reduces labor force, but also saves packaging materials. Each bagging machine, only one packaging material per year, saving more than one bagging machine. The most important thing is that through the use of bagging machine, many potential risks of manual use are reduced and safety is greatly improved. I hope we can also provide our sincere and high-quality service for your products.If you are not sure, please call us.
